Home › Products › UM3+ Underground Line Sensor

UM3+ Underground Line Sensor

Increase Visibility of Underground Power Lines

Sentient Energy’s UM3+ is an intelligent underground faulted circuit indicator and line sensor with substation-class measurement, computing and processing capabilities. The UM3+ is a powerful line sensor designed to be a platform for a set of applications.

Download Data Sheet
Descargar En Espanol

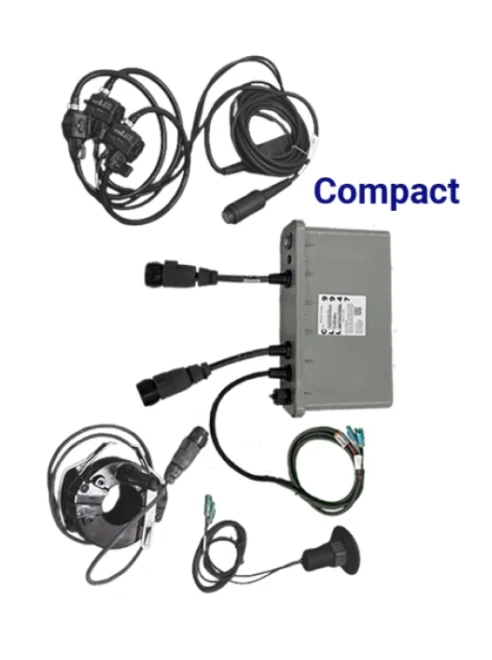

UM3 line monitor.

The UM3+ is an important element of Sentient Energy’s Grid Analytics System™, which consists of the MM3™ and ZM1™ overhead sensors, UM3+ and UM1™ underground sensors, and the Ample® Analytics Platform. The solution provides utilities with increased distribution system visibility to improve reliability and enable data-driven operational decision making.

UM3+ Line Sensor Features

Powerful Sensing

Sensing and measurement capabilities for the UM3+ include underground fault detection, highly accurate load and fault magnitude, and waveform capture. It’s also equipped with GPS for location, and a GPS/PPS level precision clock for highly accurate time-stamping, thereby allowing collating waveforms with those from other devices to perform a thorough post-event analysis.

Deployment Versatility

The UM3+ can monitor three to twelve phases to support a range of underground installations including pad mounted transformers, pad mounted switch cabinets, ring main units (RMUs), and above grade vaults. There are three options to power a UM3+. Two options use power harvesting (with 1 or 2 harvesting cores) and the third option utilizes the AC power. See more on powering options >

Advanced Network Communications

The UM3+ underground line sensor supports cellular, mesh or a combination of both communication networks, and is wirelessly configurable allowing parameters to be adjusted as needed. Operating system and application software can also be upgraded wirelessly to streamline sensor management.

UM3+ Line Sensor Applications

Underground Fault Detection and Location

The UM3+ underground faulted circuit indicator uses advanced algorithms to sense system faults on underground lines in real-time, communicating fault information immediately to the utility control center for integration with SCADA, DMS or OMS systems. With more precise fault location information, operators can dispatch crews to the correct location, significantly reducing patrol time and outage duration.

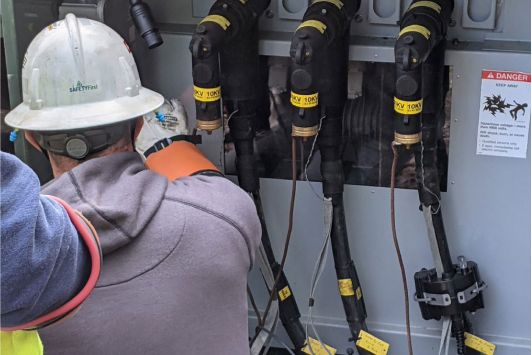

Person in a hard hat working on underground lines.

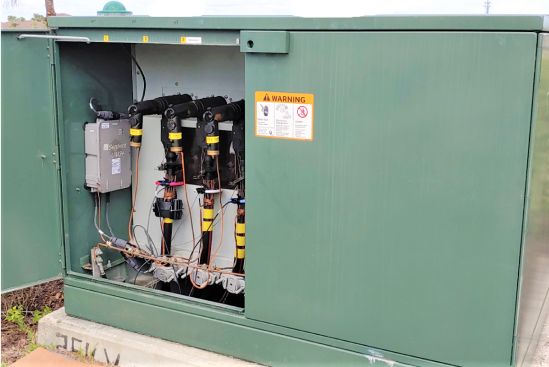

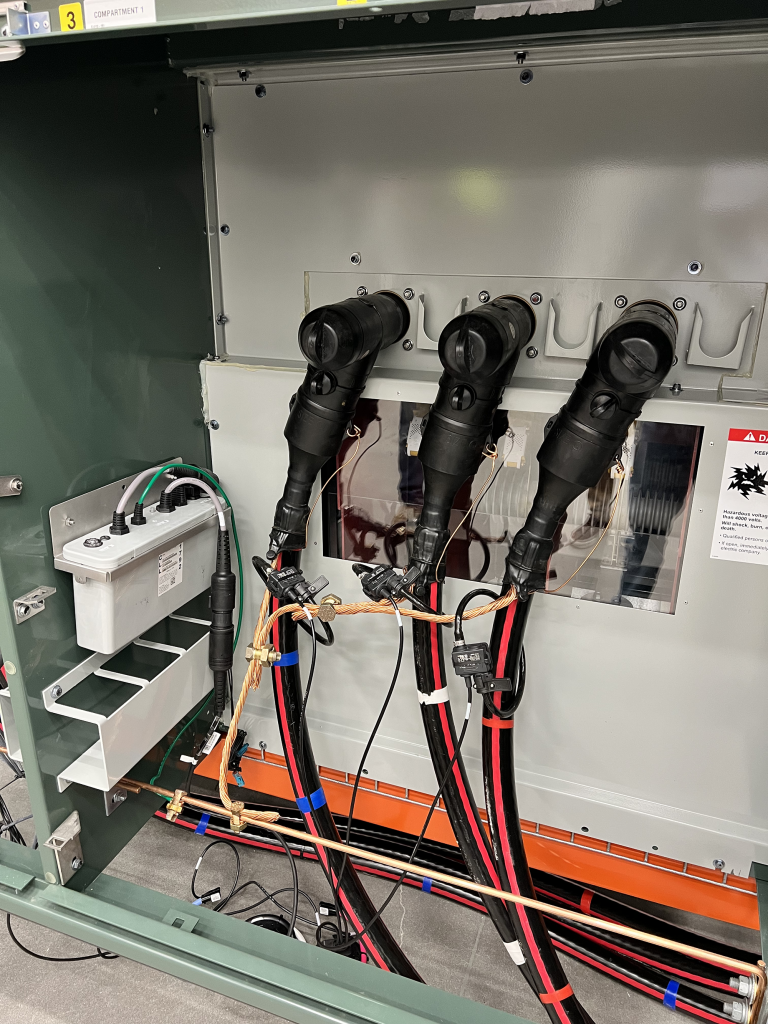

Green metal housing for UM3 line monitor and lines.

Interruption & Disturbance Analysis

Equipped with high resolution waveform capture capability at a rate of 256 samples per cycle, the UM3+ captures and records waveforms of faults and line disturbances. Complete waveform data for faults is immediately available in Ample, and waveform data for disturbances is stored locally on the UM3+ and is available to download to Ample analytics software when needed. Understanding the root causes of power system interruptions essential for improving distribution grid reliability.

Distribution Monitoring System

The UM3+ Log-I app continually measures current for load monitoring purposes. This collected data is processed on the device and critical information such as alerts, daily peaks, and averages are reported to Ample analytics software.

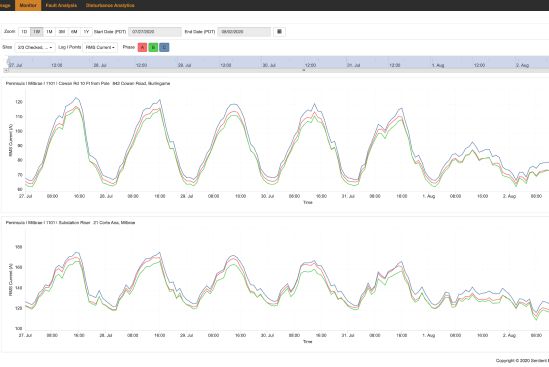

Screenshot of graphs showing load current.

Check Out Our Underground Line Sensing Value Calculator

Learn More

Three Ways to Power the UM3+

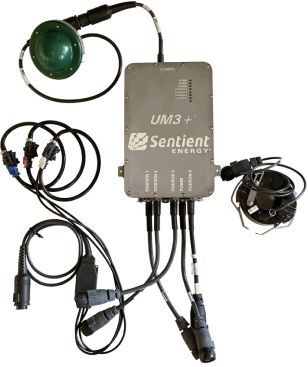

UM3+ Powering Options Image 3 Phases 6 Phases 9 Phases 12 Phases
1. Single harvest core sentient-energy-Single Harvest Core transparent
12-14A
17-19A
19-21A
20-22A
2. Two harvest cores with Y cable adapter sentient-energy-Dual Harvest Core transparent
8-9A
10-11A
11-12A
11-12A
3. 100-240V AC Adapter 120-240V AC Adaptor
Power directly from AC

Proven Field Deployments

Sentient 1
Sentient 2
Sentient 3
Sentient 4
Sentient 5
Sentient 6
Sentient 7

Ready for Better Underground Visibility?

Find out how Sentient Energy can help

Contact Us
